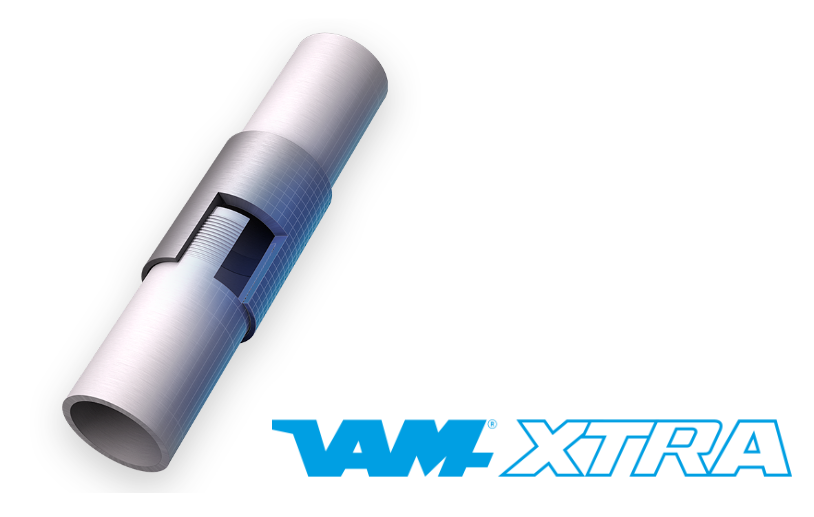

VAM® XTRA
Optimized Torque & Gas Sealability for Shale Applications
VAM® XTRA is a new threaded and coupled premium connection innovatively designed for extreme high torque shale gas applications. Powered by the industry proven, reliable hooked thread form VAM® is known for, now with shale gas validated performance. VAM® XTRA stands up to the unique challenges of shale – ensuring consistent, reliable performance where it matters most.
Benefits
Benefits
Gas sealability for shale plays
Proven performance under shale-specific loading conditions
Ideal for extended laterals
Extreme torque with high rotational fatigue life & 100% burst ratings
Fast and easy running
Deep stabbing and self-aligning thread form & smooth ID for production operations
Performance
Performance, Application & Product Range

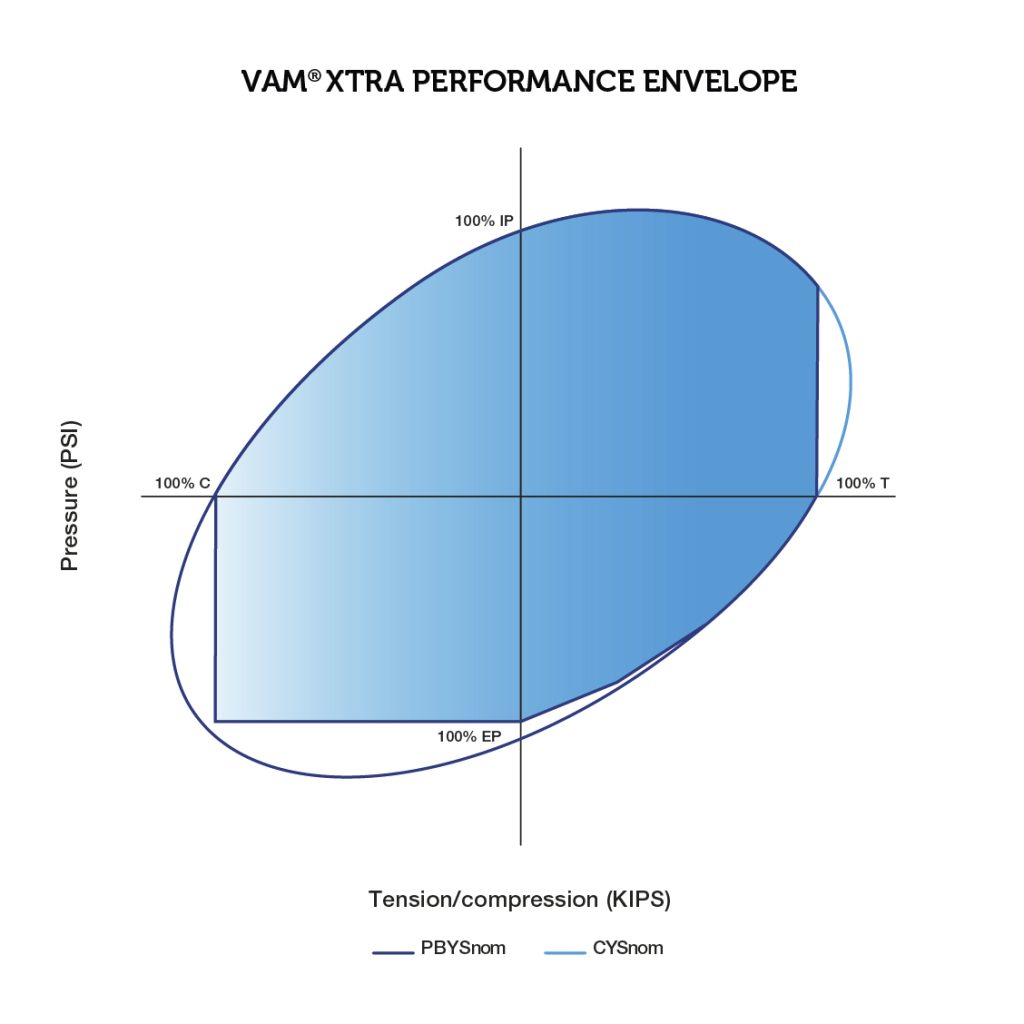

Performance
- Easier running compared to wedge thread form performance
- Higher operational torque than VAM® 21 HT
- 100% pipe body performance
- Up to 30deg/100ft bending rating
- Low hoop stress
Applications
-
- Production casing—full string solution
- Conventional and unconventional gas wells
- Extended reach and long laterals
- Low hoop stress
Product Range
Product Range
OD: 4.5”-6”
Grades: Carbon Steel, including enhanced Vallourec proprietary grades for shale application such as T95E, P110MS, P110RY, P110EC
YS: 80ksi-125ksi
