Submagnetico
Prevent scale formation and improve production rates unobtrusively.
Submagnetico applies a magnetic force on the extracted fluid reducing the formation of scale on the production string, significantly increasing production rates and reducing external intervention.
Vallourec’s anti-scaling magnetic technology, innovatively optimizing your production.

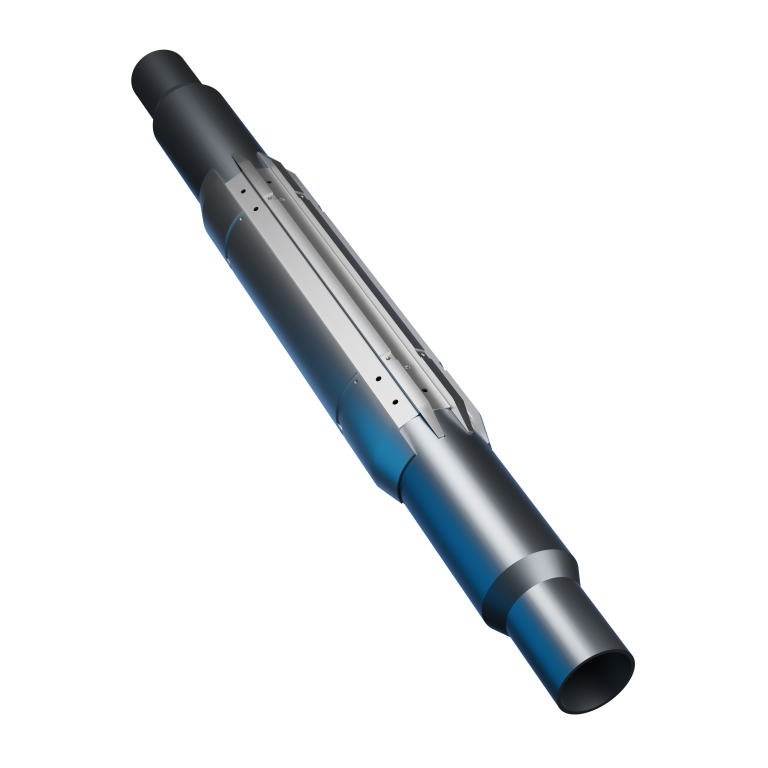

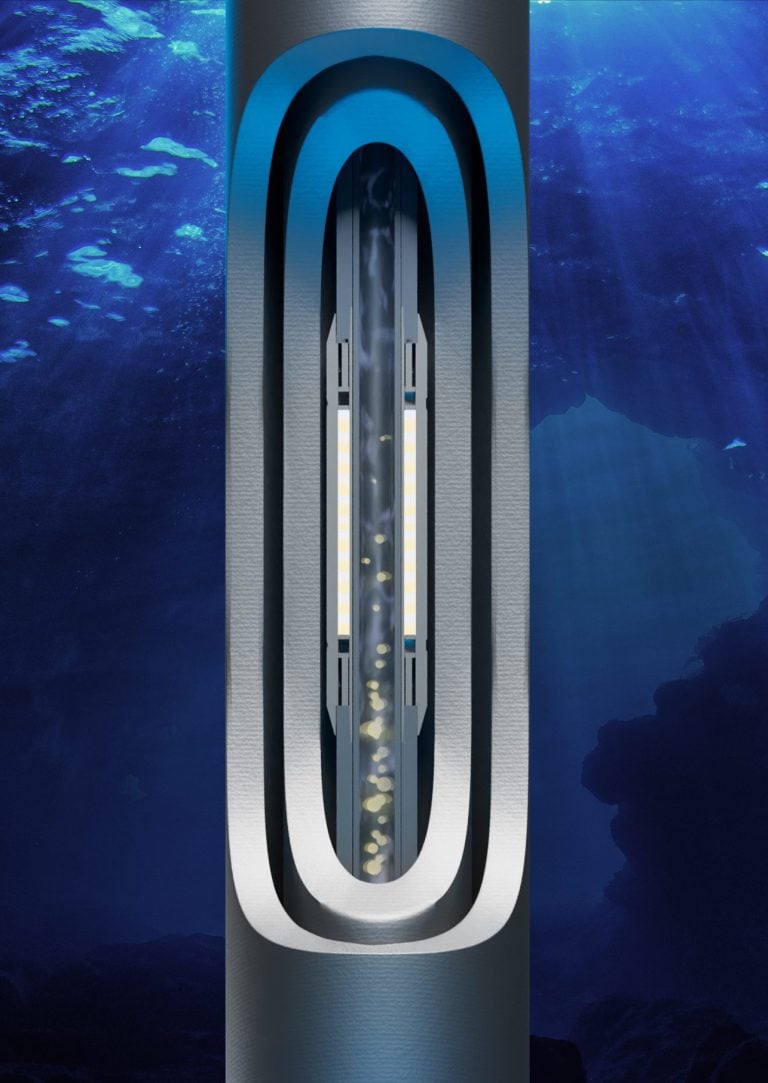

Submagnetico, a solution developed by Vallourec, is run with the tubing string, needing no special handling nor external energy source. Submagnetico works by applying a magnetic field on the extracted fluid preventing scale formation in the production string. The high-strength magnets, placed perpendicular to the flow of the fluid, promotes the formation of less stable crystals which reduces its adhesion to the walls.
Submagnetico reduces the number of production stoppages due to incrustation removal. It is resistant to high temperatures, high pressures, and corrosive environments.
- It has been qualified for offshore installation to withstand harsh conditions
- Already run in a pre-salt well
- Connection qualification according to VAM® guidelines
- Shock tests up to 200g
- Vibration tests 6,0G RMS (random vibration)
- Hydrostatic test of the assembly up to 10.000psi.
- Tubular equipment to be integrated by threaded connections in a production string in onshore or offshore wells
- No external energy source required
- No special handling needed
- Available with all VAM® connections in different steel grades
- It can be designed to meet all string criteria like mechanical properties, outer and inner diameter fitting with your COP.
