Oil & Gas Mechanicals
A complete offer of seamless mechanical tubing for a wide range of vital components in the Oil & Gas industry.
With the largest size range of seamless pipe with wall thickness up to 3” (76 mm) and a complete portfolio of steel grades, used and approved by all major Oil & Gas companies, including proprietary high yield grades – up to 175 ksi – as well as sour service and high alloy grades for improved performance in corrosive environments, Vallourec mechanical tubing is used in a variety of oil field equipment.
Benefits
Benefits
Tailor made size
Excellent and consistent mechanical properties
Cost effective
Grades
Grades & Materials
- Low Alloy Cr-Mo Steel Grades in standard and enhanced chemistries. Capable to guarantee steel grades in wall thickness up to 3”
- API 5L material such as X70 or X80 for Top Tension Riser application with weld-on connectors
- 4140 (material) in grades 80, 110 and 125 KSI
- 4130 in grades 75, 80, 85 KSI
- 4130 mod in API 5CT grades L80, P110, Q125, T95, C110 & in grades with minimum Yield Strength up to 175 KSI
- Vallourec proprietary grades issued from OCTG for sour service environment for accessories (VM80SS to VM125SS as well as VM110XS)
- 9 Cr, 13Cr & Super 13Cr
Range
Dimensions Range
Complete dimensions range
- OD: 2’’ – 26’’ – WT: 0,314’’- 3’’
- Gapless range and tailor made dimensions: OD: 3,15’’ – 17,5’’ – WT: 0,314’’ – 3’’
- Tight OD & WT tolerances

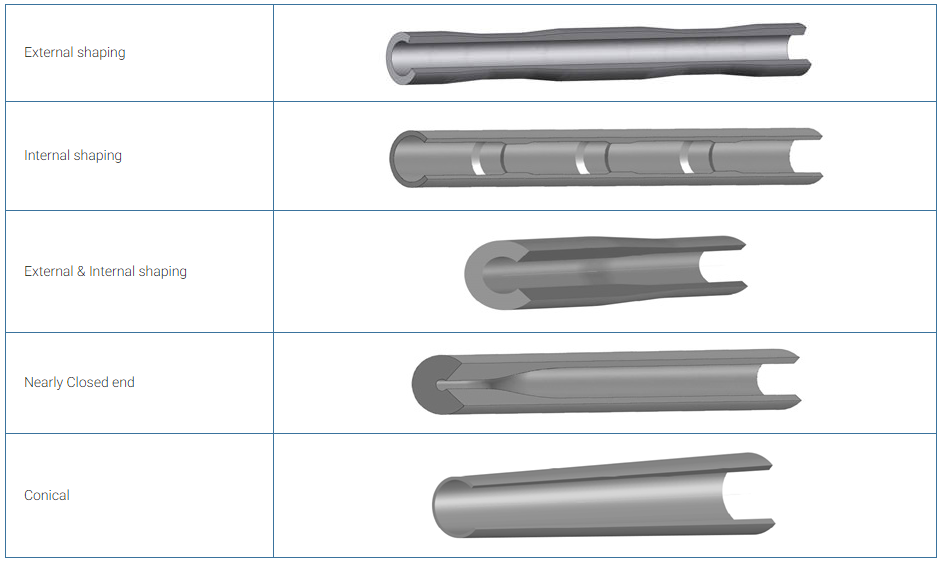

- Shaped pipes issued from Vallourec unique forging process
Applications
Applications
Drilling: equipment and accessories used during the drilling operations
- Liner systems
- Mud Motors
- Choke & Kill
- Drilling Safety Valves
- Expendables
Completion: equipment used to complete the well
- Packer sytems
- Perforating components
- Sliding sleeves
- Production Safety Valves
- Fracking Equipment
Wellhead equipments
- Surface and Subsea manifolds
- Surface a Subsea Christmas Tree
- Blowout Preventer (BOP)
